Engine Spares
Exhaust bellows

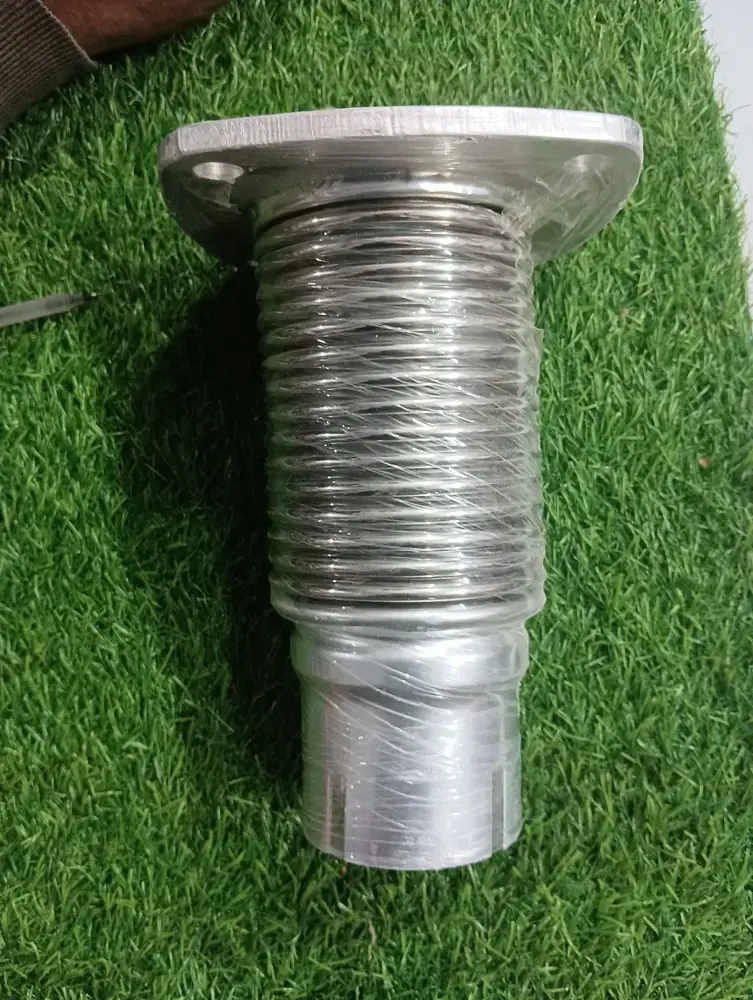

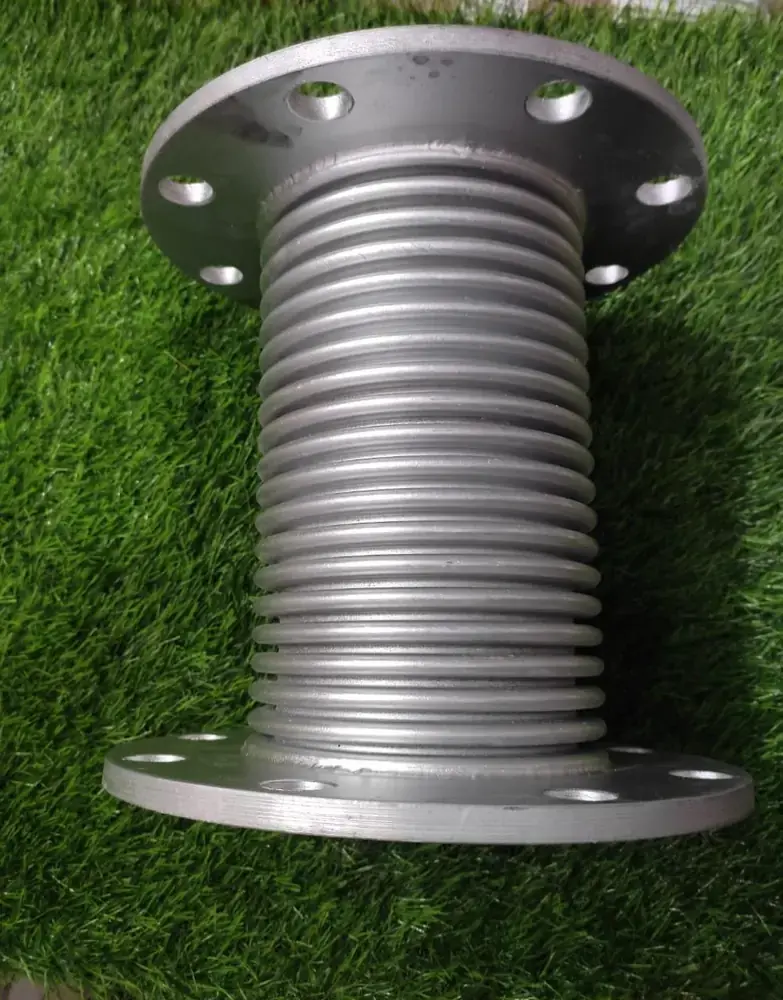

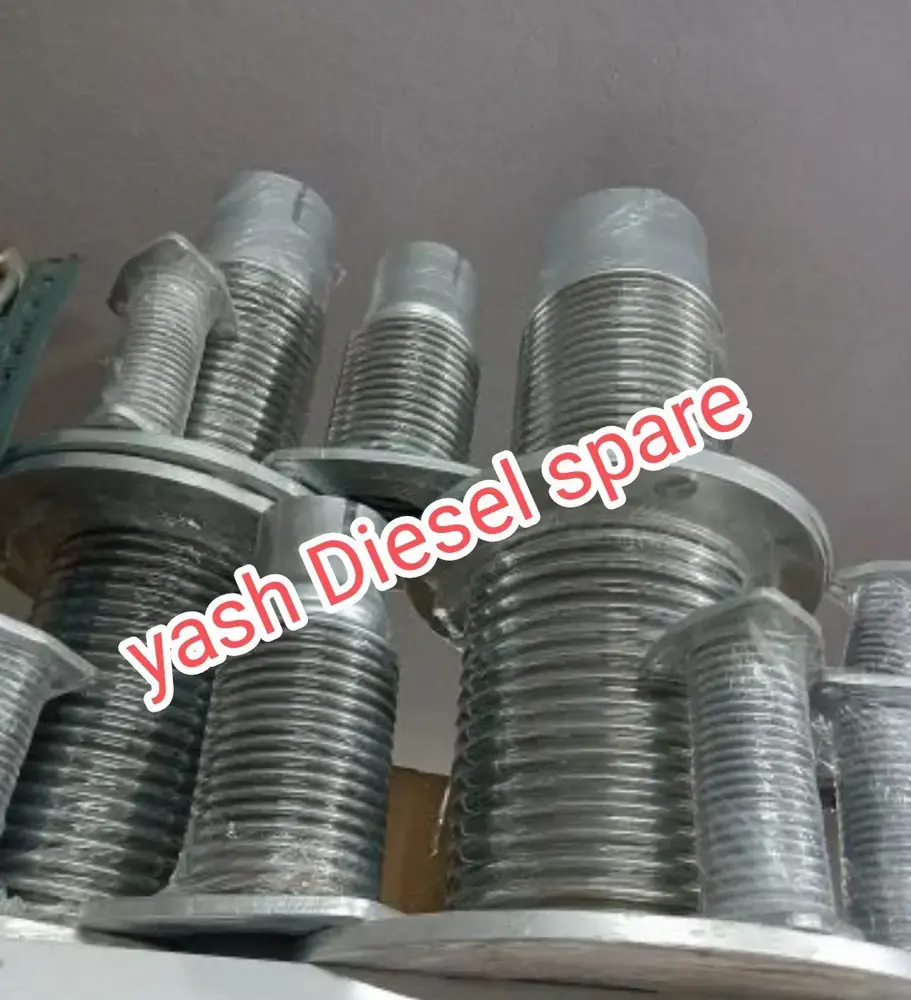

Exhaust bellows and outlet connections in stainless steel, from 63 mm to 127 mm bore. Give us the bore size and the flange pattern.
What to send us
The number stamped on the old part is the quickest route. If it has worn off, the engine or genset model and serial number usually gets us there. Photos help more than descriptions.
We cross-check whatever you send against the OEM catalogue and confirm the match with you before anything ships.
About this range
An exhaust bellows is the flexible stainless section between the engine's exhaust outlet and the fixed pipework. It does two things: it keeps engine vibration out of the exhaust run, and it absorbs the growth of the pipe as it heats. Steel moves roughly twelve millimetres per metre at 500 degrees, so on a long run that movement has to go somewhere.
Without one, or with one that has seized solid, that load goes back into the manifold and the turbo flange. Bellows fail by cracking along the convolutions, usually at one end, and a split shows as a sooty streak or an audible leak near the joint.
Order by bore, overall length and end type, whether flanged or plain for welding. The engine model on its own will not identify one, because the same engine is piped differently in every installation.
Products in this category
4 listed
Open one for its specification and the part numbers it covers. We stock more than we list, so send us the number even if yours isn’t here. You can also look a number up in the part number index.
