Cummins PSO 601 / PSO 602 genset controller

PSO 601 and PSO 602 controllers for Cummins sets, as used on the K19 500 kVA Cool-Pac. The PSO 601 replaced the PC1.1 and PC1.2 controllers on 500 kVA sets, so the alternator and AVR have to be matched to it.

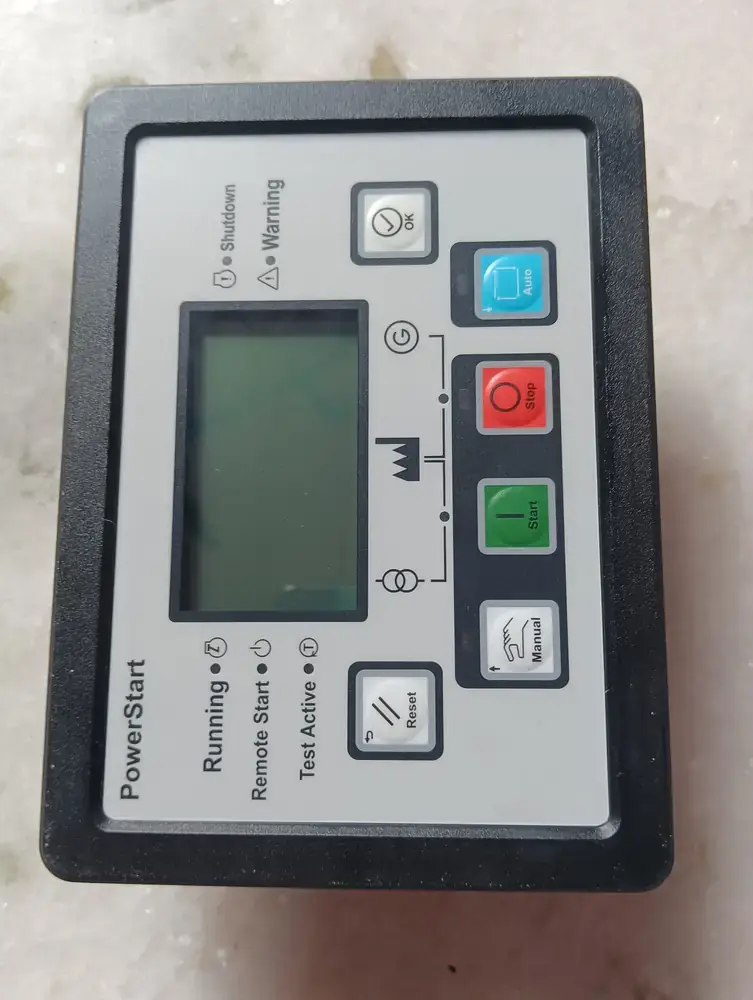

Cummins PSO 601 / PSO 602 genset controller, part number A063J660

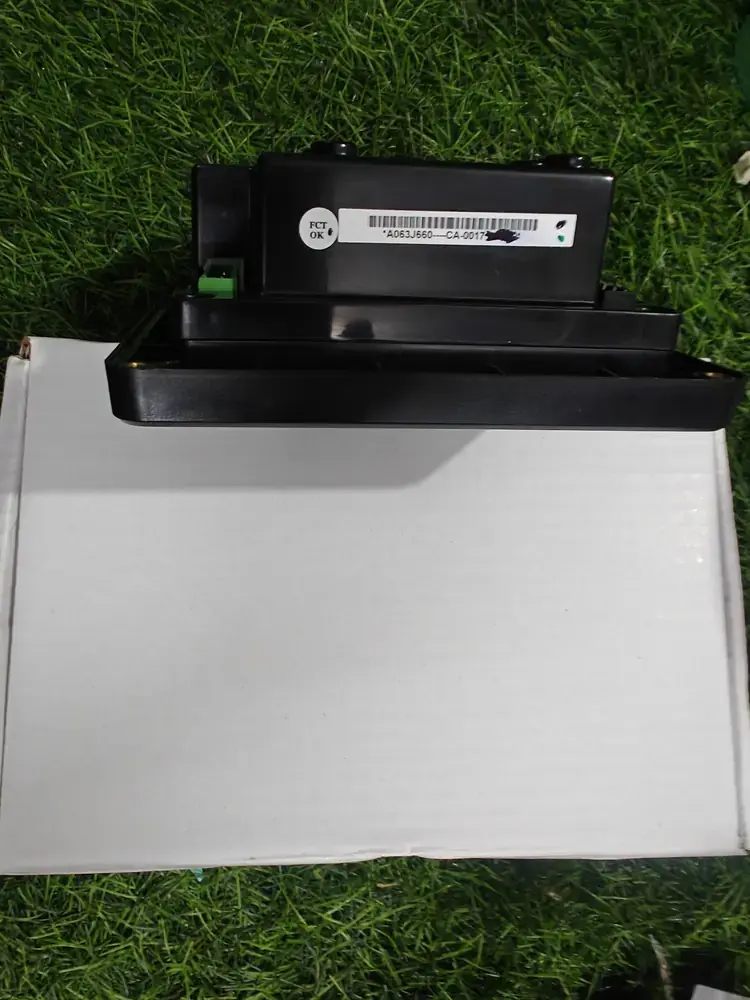

Cummins PSO 601 / PSO 602 genset controller, part number A063J660
Cummins PSO 601 / PSO 602 genset controller, part number A063J660

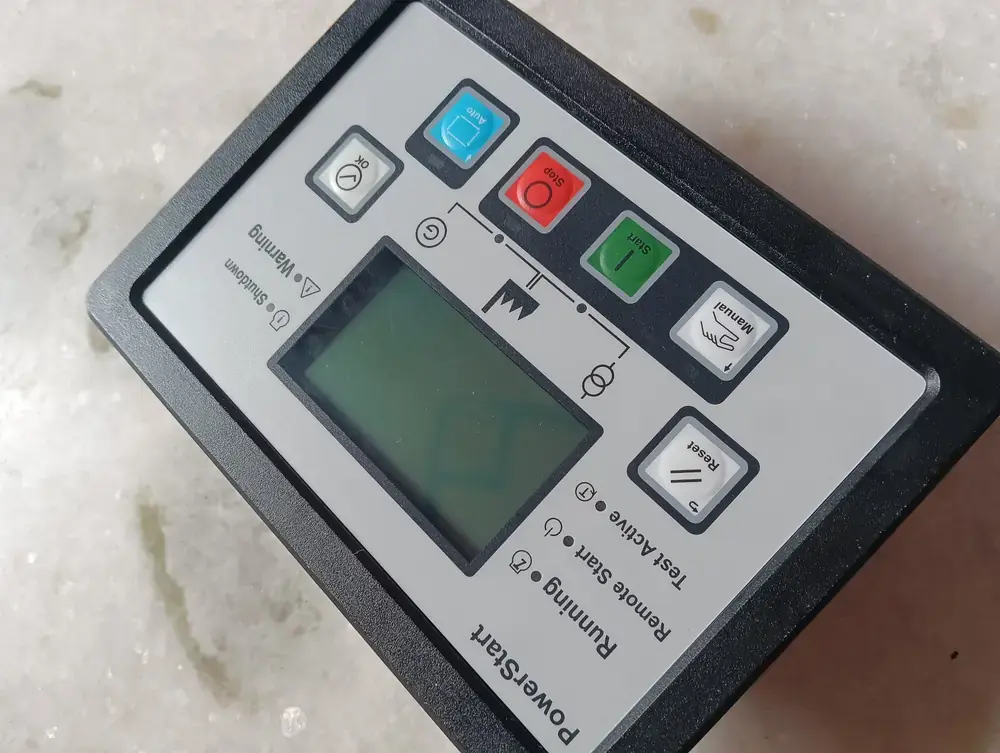

Cummins PSO 601 / PSO 602 genset controller, part number A063J660
Cummins PSO 601 / PSO 602 genset controller, part number A063J660

Part numbers

  • A063J660
  • A064A614
Check availabilityCall the shop

We quote on enquiry. Send the number off the old unit and we’ll check it against the OEM catalogue before you order.

Specification

Model
PSO 601 / PSO 602
Power rating
500–1000 kVA
Phase
Three phase
Supply voltage
24 V DC
Rated speed
1500 rpm
Display
LED
Inputs
10
Communication
RS485
Mounting
Panel mount
Function
Start/stop, auto mains fail, engine protection
Protection
Low oil, high temperature, over speed, over voltage, under voltage

More in Generator controller

6 of 61

View all Generator controller

Not sure this is the right one?

A number that reads clearly can still have been superseded, and an engine model on its own rarely settles fitment. These are worth a few minutes before you order.
